Sale!

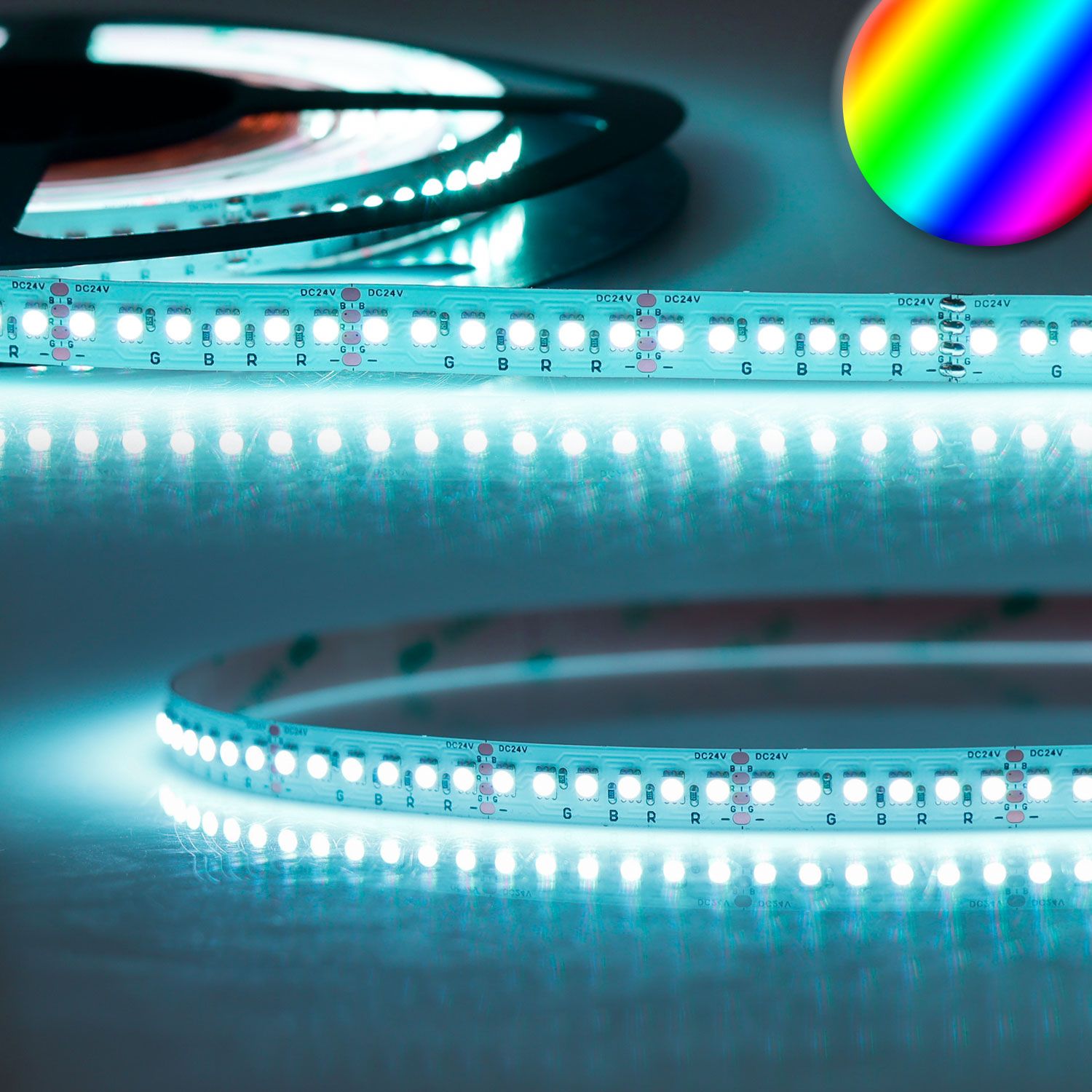

10mm LED RGB Linear10 24V 12W/m IP20 180LED/m 5m LED strip
$ 93.81
Compare
Product description LED RGB Linear10 flex stripe, 24V DC, 12W, IP20, 5m roll, 180 LED/m GTIN – EAN 9009377095023 Features Special features Separation point: 33,33mm with 6 SMD each | Pitch (light point center-center): 5,56mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides Nominal voltage 24 V DC Rated power 12 W/m Active power 11 W/m RGB light source Yes CRI Ra 85 Beam angle 120° Dimmable Yes Dimming Specifications Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer Protection class IP20 Permissible ambient temp. 0°C – 40°C LED chips per metre 180.000000 LED/roll 900,00 Properties of connection cable Connection cable on both sides Matching connectors C2-410 Separation point (mm) 33.33 mm LED/disconnection point 6.000000 Pitch SMD (mm) 5.56 Cooling mass g/m 75.00 g/m Max. length per feed (m) 5.00 m Tape type 3M 300LSE Width in mm 10,0 Length in mm 5000,0 Height in mm 1,0 Lifetime L70|B10 53000 Useful life L70|B50 80000 Useful life L80|B50 in hours 70000 Guarantee in years 2 SKU: ISO-114988 Categories: 24V LED Strips, COLOR LED strips
