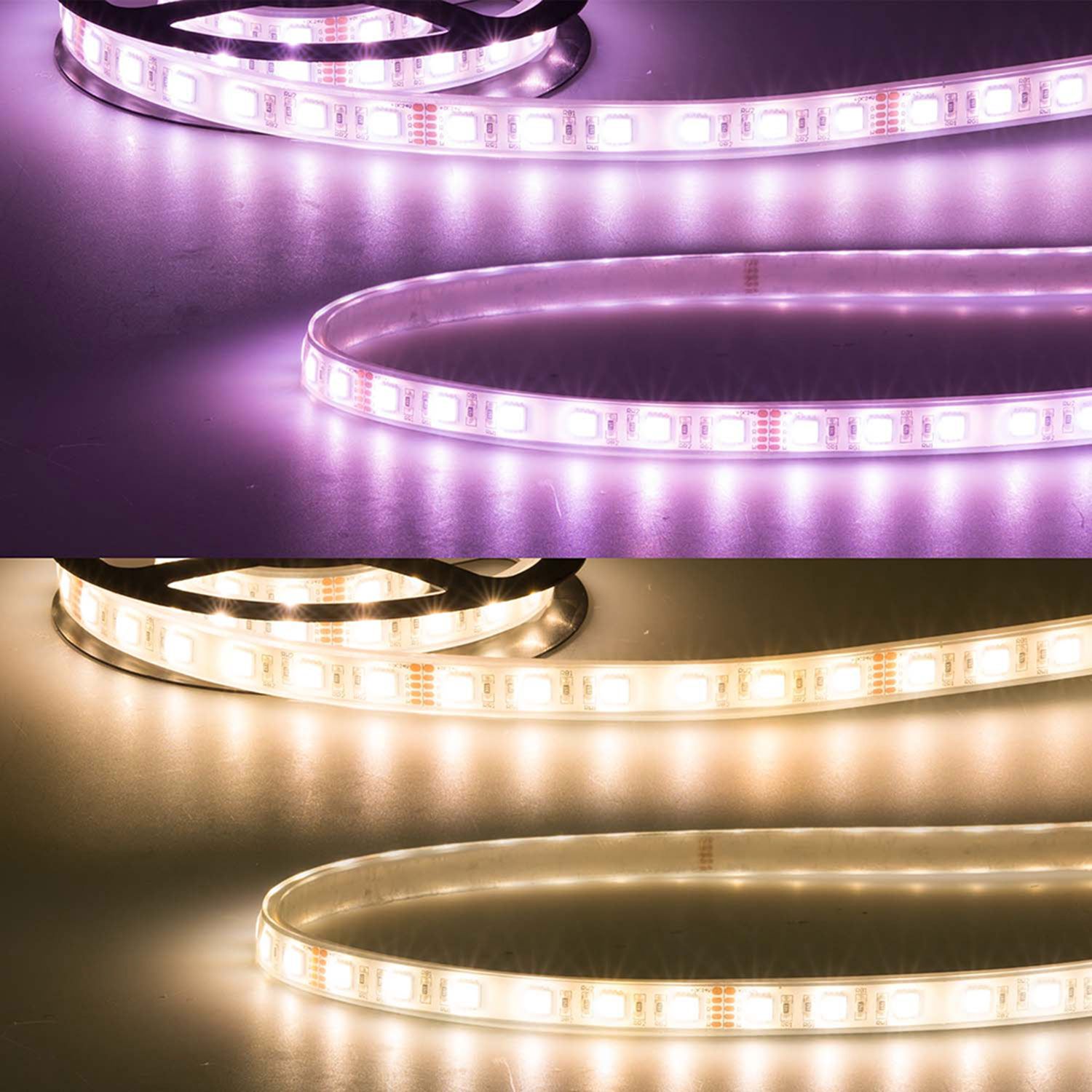

8mm RGB LED strip 24V 12W 120LED/m Micro 5m
$ 99.06
Compare
Product description LED RGB MICRO flex stripe, 24V DC, 12W, IP20, 5m roll, 120 LED/m GTIN – EAN 9009377059803 Features Special features Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides Nominal voltage 24 V DC Rated power 12 W/m Active power 12 W/m Efficiency in LM 0 RGB light source Yes Permissible ambient temp. 0°C – 40°C max. ambient temperature in °C 40 min. ambient temperature in °C 0 Beam angle 120° Dimmable Yes Dimming type PWM Dimming Specifications Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer Protection class IP20 Outdoor N LED chips per metre 120.000000 LED/roll 600,00 Properties of connection cable cable on both ends Separation point (mm) 50.00 mm LED/disconnection point 6.000000 Pitch SMD (mm) 8.33 Cooling mass g/m 75.00 g/m Max. length per feed (m) 5.00 m Tape type 3M 300LSE Weight in gramm 122 Width in mm 8,0 Length in mm 5000,0 Height in mm 2,0 Lifetime L70|B10 52000 Useful life L70|B50 78000 Useful life L80|B50 in hours 68000 Guarantee in years 2 SKU: ISO-113599 Categories: 24V LED Strips, COLOR LED strips, Narrow LED strips
