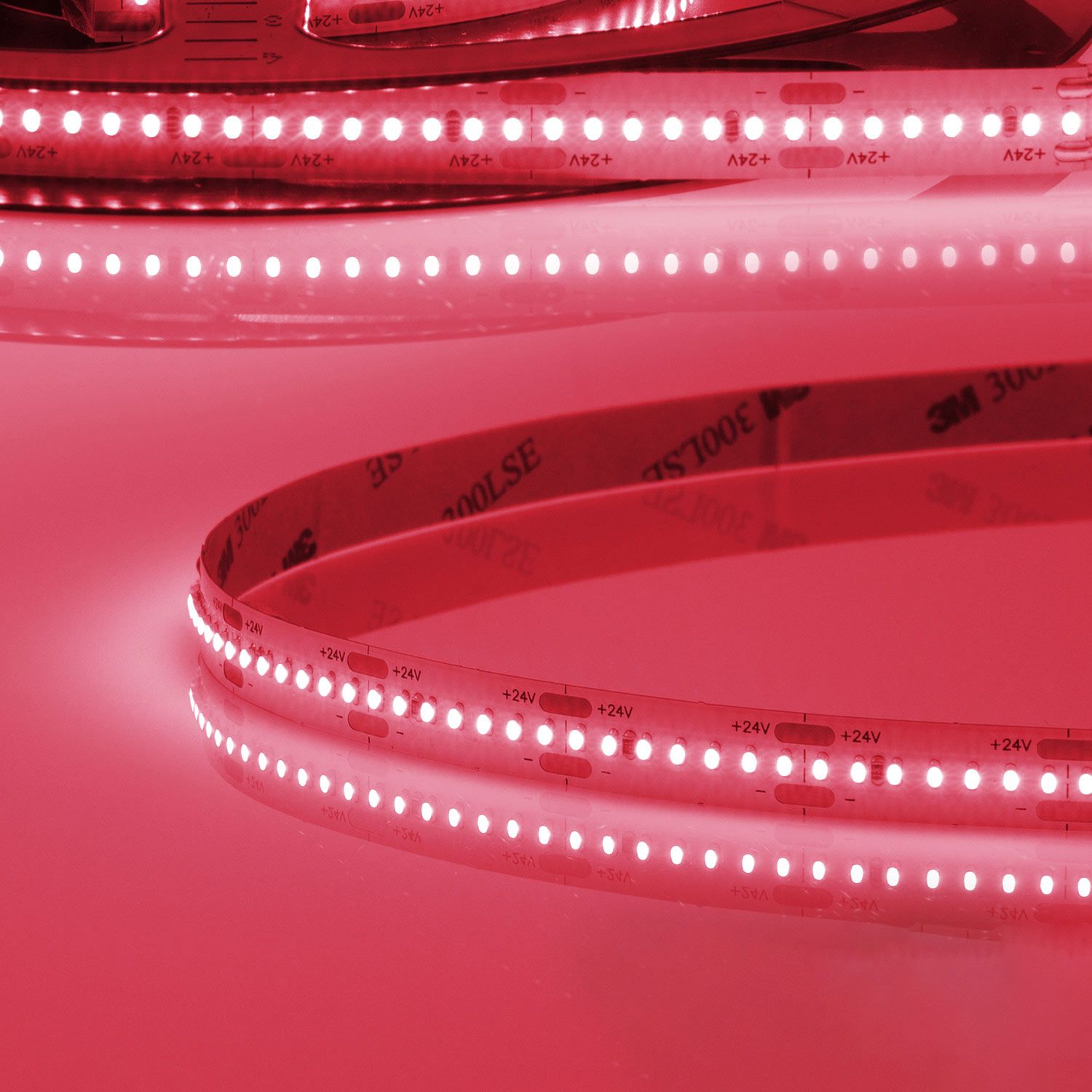

LED CRI9P Linear10 24V 15W pink 280LED/m 5m strip
$ 91.72
Compare
Product description LED CRI9P Linear10 flex stripe, 24V DC, 15W, IP20, pink, 5m roll, 280 LED/m GTIN – EAN 9009377069796 Features Special features Separation point: 25mm with 7 SMD each | Pitch (light point center-center): 3,57mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 Nominal voltage 24 V DC Rated power 15 W/m Active power 15 W/m RGB light source Yes CRI Ra 85 Beam angle 120° Dimmable Yes Dimming Specifications Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer Protection class IP20 Permissible ambient temp. 0°C – 45°C LED chips per metre 280.000000 LED/roll 1.400,00 Matching connectors K2-210 Separation point (mm) 25.00 mm LED/disconnection point 7.000000 Pitch SMD (mm) 3.57 Cooling mass g/m 75.00 g/m Max. length per feed (m) 5.00 m Tape type 3M 300LSE Width in mm 10,0 Length in mm 5000,0 Height in mm 2,0 Lifetime L70|B10 53000 Useful life L70|B50 80000 Useful life L80|B50 in hours 70000 Guarantee in years 5 SKU: ISO-114052 Categories: 24V LED Strips, COLOR LED strips
