Sale!

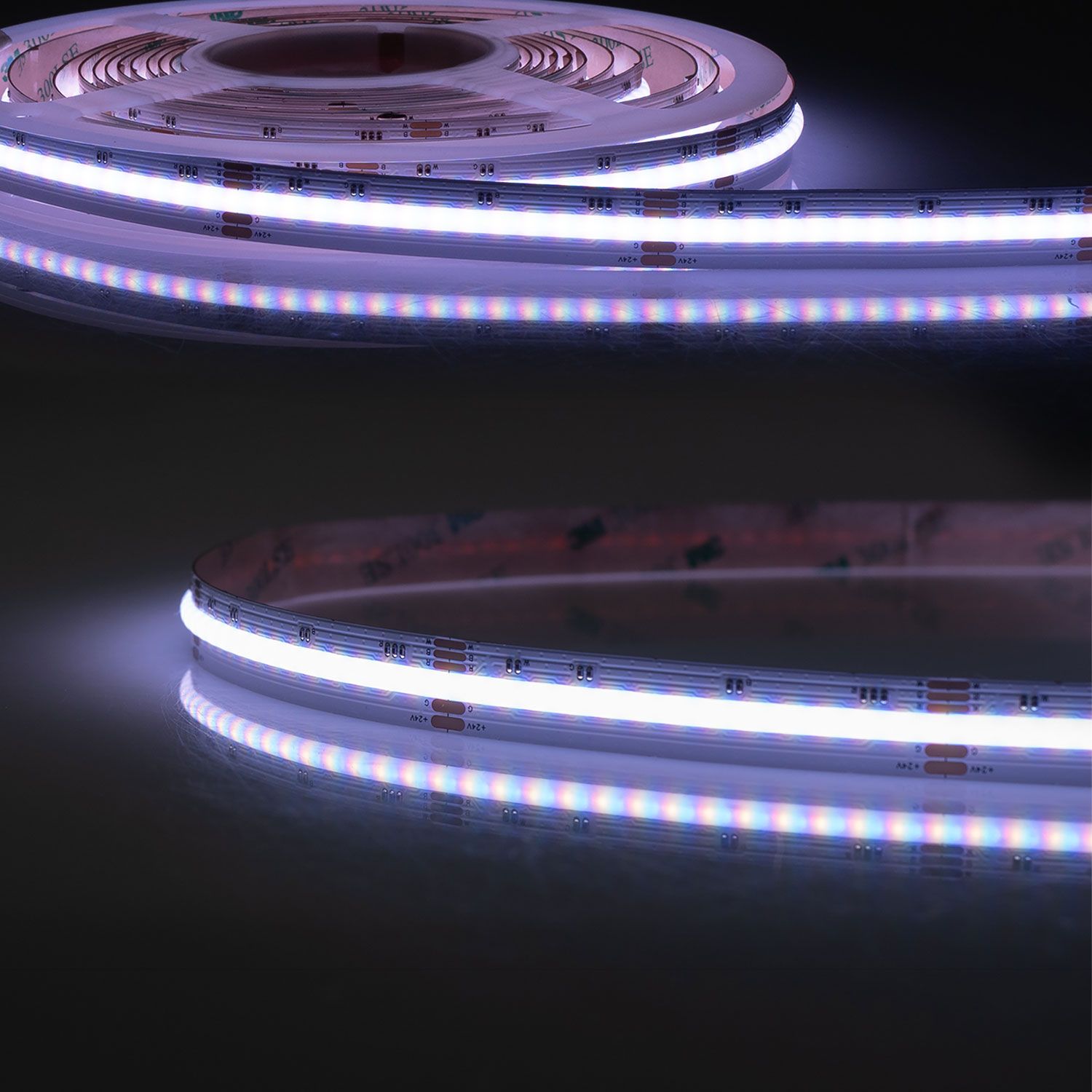

12mm 24V LED COB RGBW(3000K) 20W IP20 5m roll, 896LED/m
$ 93.61
Compare
Product description LED COB RGB 3000K Linear flex stripe, 24V DC, 20W, IP20, 5m roll, 896 LED/m GTIN – EAN 9009377148101 Features Special features Separation point: 62,5mm with 56 SMD each | Pitch (light point center-center): 1,12mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-512 | Special feature: connection cable one-sided Nominal voltage 24V DC Rated power 20 W/m Active power 20 W/m Efficiency in lm/W 62 Luminous flux in lumen 1250 lm/m RGB light source Yes Color temperature 3000K Permissible ambient temp. 0°C – 40°C max. ambient temperature in °C 40 min. ambient temperature in °C 0 CRI Ra 90 Beam angle 120° Dimmable Yes Dimming type PWM Protection class IP20 LED chips per metre 896.000000 LED/roll 4.480,00 Properties of connection cable Connection cable on one side Matching connectors K2-512 Separation point (mm) 62.50 mm LED/disconnection point 56.000000 Pitch SMD (mm) 1.12 Cooling mass g/m 140.00 g/m Max. length per feed (m) 5.00 m Tape type 3M 300LSE Weight in gramm 220 Width in mm 12,0 Length in mm 5000,0 Height in mm 2,0 Lifetime L70|B10 38000 Useful life L70|B50 57000 Useful life L80|B50 in hours 50000 Guarantee in years 3 SKU: ISO-115790 Categories: 24V LED Strips, COLOR LED strips, DOTLESS-COB LED Strip, MINIAMP 24V FAST CONNECT
